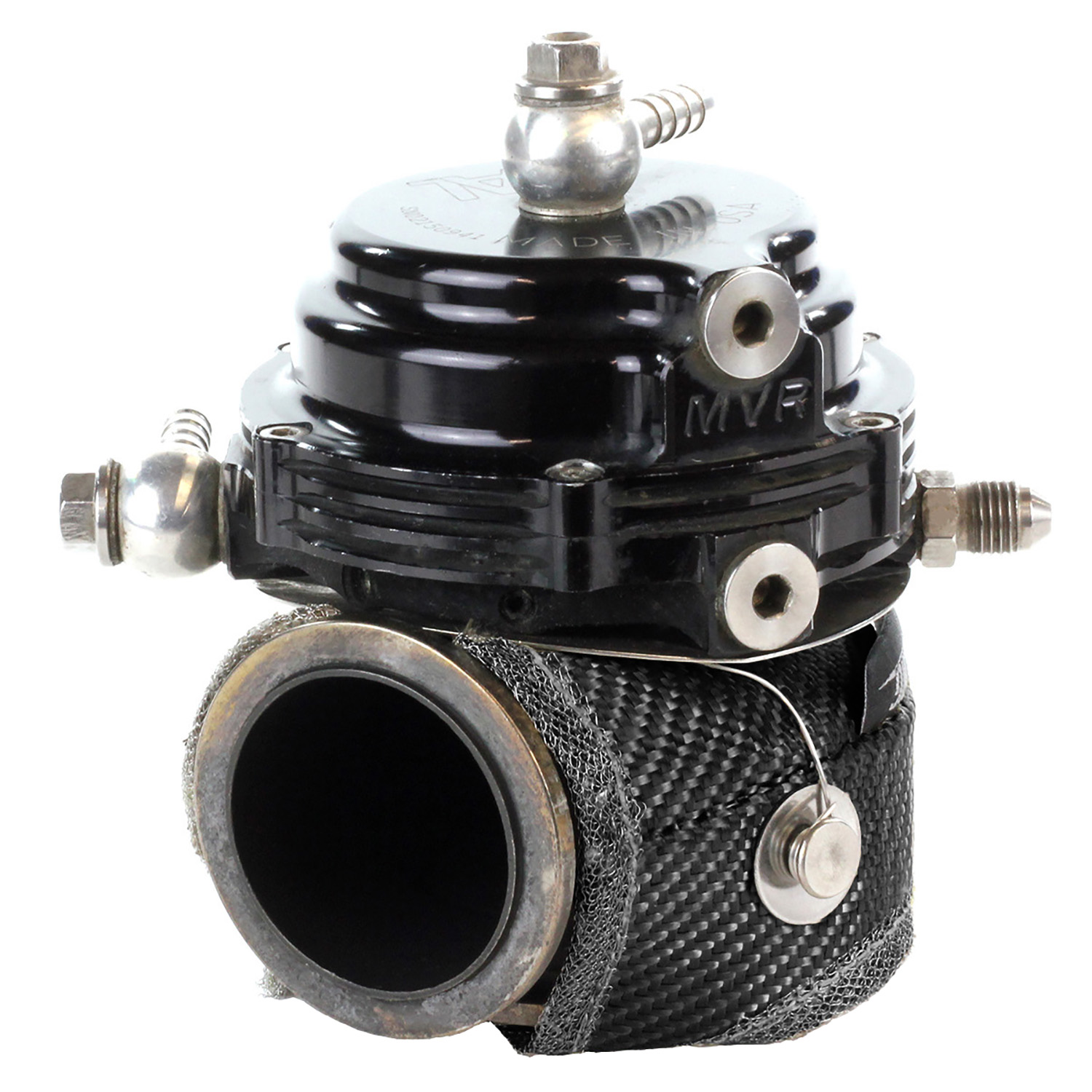

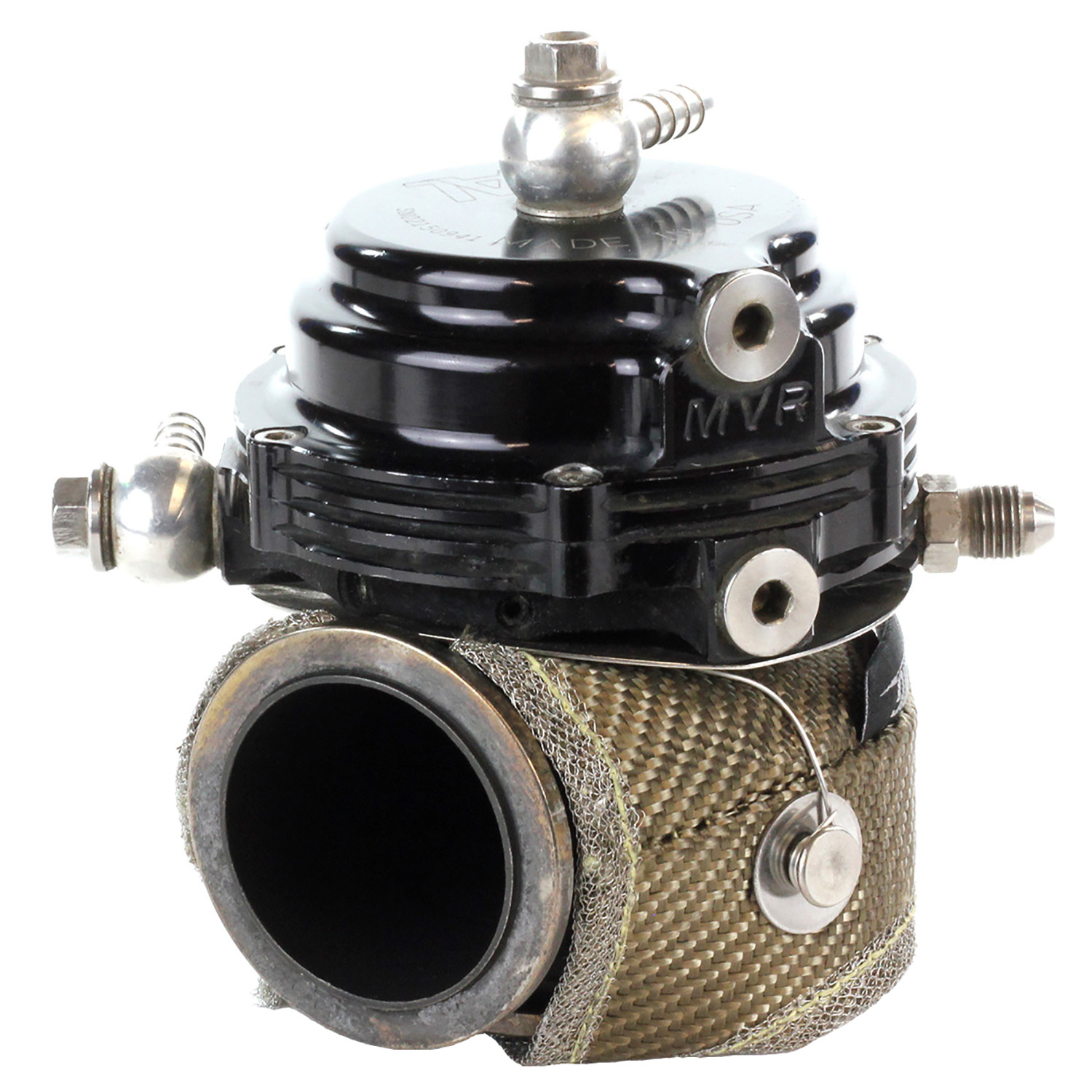

Exoracing External Wastegate Blanket Titanium or Carbon

Exoracing External Wastegate Blanket Titanium or Carbon

External wastegate blanket for 38, 44, 50 and 60mm wastegates. Titanium or carbon finish, 1200°C rated insulation and locking wire included.

Incl. Vat

UK deliveryDelivery options shown at checkout

Easy returnsSee our returns policy

Protected paymentsKlarna · Clearpay · PayPal

Need help?Get in touch before ordering

Credit options are subject to eligibility and provider terms. Consider affordability before borrowing.

Choose The Right External Wastegate Blanket For Your Turbo Setup

The Exoracing external wastegate blanket is designed to contain radiant heat from an external wastegate and reduce the amount of heat soaking into your engine bay. It is available in 38mm, 44mm, 50mm and 60mm sizes, with titanium or carbon finish options to match the rest of your heat-management setup.

Available sizes: 38mm, 44mm, 50mm and 60mm external wastegates
Available finishes: titanium or carbon weave
Temperature rating: 1200°C / 2100°F working temperature
Construction: carbon or titanium weave exterior with silica insulation wool centre
Included: 1 external wastegate blanket, 1 stainless locking wire and Exoracing lifetime warranty

Important: choose the blanket size that matches your external wastegate size. Let the wastegate cool fully before fitting, wear gloves during installation, and keep the blanket away from oil, coolant and other contaminants.

Why Do I Need An External Wastegate Blanket?

External wastegates sit in one of the hottest parts of a turbo setup. During hard road, track, drift or dyno use, they can radiate heat into nearby wiring, vacuum lines, boost control hoses, brake lines, intake pipework and bodywork. That heat can make the engine bay harder to work around and can shorten the life of nearby components.

An external wastegate blanket works by helping to contain radiant heat at the wastegate instead of letting it spread through the engine bay. That helps protect nearby parts, reduces the chance of heat-related wiring or hose damage, and makes the turbo area safer to work around once the car has cooled.

This is best treated as part of the full turbo heat-management system. If you are controlling heat around the manifold, turbo and downpipe, pair this with an Exoracing turbo blanket, Exoracing exhaust wrap and Exoracing heat reflective tape for nearby panels, intake parts and wiring.

Which Wastegate Blanket Size Do I Need?

Choose the blanket size that matches the external wastegate size. If you are not sure, check the wastegate brand/model specification or measure the wastegate before ordering.

Blanket Size	Choose This If	Finish Options
38mm	Your external wastegate is listed as 38mm.	Titanium or carbon
44mm	Your external wastegate is listed as 44mm.	Titanium or carbon
50mm	Your external wastegate is listed as 50mm.	Titanium or carbon
60mm	Your external wastegate is listed as 60mm.	Titanium or carbon

Titanium Or Carbon Finish?

Finish	Best For
Titanium	A classic motorsport heat-management look that pairs well with titanium exhaust wrap and turbo blankets.
Carbon	A darker finish for builds where you want the blanket to look more subtle in the engine bay.

Purchase Includes:

1 x Exoracing external wastegate blanket
1 x Exoracing stainless locking wire
1 x Exoracing lifetime warranty

Features:

Helps contain radiant heat from external wastegates
Reduces heat soak around turbo systems and nearby engine bay components
Helps protect wiring, vacuum lines, boost hoses and nearby parts from heat damage
1200°C / 2100°F working temperature rating
Silica insulation wool centre with carbon or titanium weave exterior
Available for 38mm, 44mm, 50mm and 60mm external wastegates
Supplied with stainless locking wire for secure fitment
Available in titanium or carbon finish
Includes Exoracing lifetime warranty

External Wastegate Blanket Installation Guide:

Fitting is straightforward, but always wait until the wastegate is completely cool before touching it. Wear gloves when handling heat blankets because loose fibres can irritate skin.

Let the turbo system and wastegate cool fully before installation.
Check that you have the correct blanket size for your external wastegate.
Position the blanket around the external wastegate body. The shape should make the correct orientation clear.
Route the supplied locking wire around the blanket hooks.
Pull the locking wire tight enough to hold the blanket securely without crushing or distorting it.
Check clearance around boost hoses, vacuum lines, wiring and the screamer pipe or dump tube.
After the first heat cycle, recheck that the blanket is still secure and has not moved.

Technical Specifications:

Specification	Details
Exterior Material	Carbon or titanium weave
Centre Material	Silica insulation wool
Sizes Available	38mm, 44mm, 50mm, 60mm
Finishes Available	Titanium or carbon
Working Temperature	1200°C / 2100°F
Locking Wire Material	Stainless steel
Hook Anchor Material	Stainless steel
Warranty	Exoracing lifetime warranty

Frequently Asked Questions

Which size external wastegate blanket do I need?

Choose the blanket size that matches your external wastegate size: 38mm, 44mm, 50mm or 60mm. If you are unsure, check the wastegate manufacturer’s specification before ordering.

What is the difference between titanium and carbon finish?

The main difference is appearance. Choose titanium if you want the classic motorsport heat-management look, or carbon if you want a darker finish.

Does it include the locking wire?

Yes. Each Exoracing external wastegate blanket includes stainless locking wire for installation.

Can this be used with a turbo blanket?

Yes. A wastegate blanket and turbo blanket work well together because they control heat from different parts of the turbo system.

Can oil or coolant damage the blanket?

Yes. Keep the blanket away from oil, coolant and other contaminants because they can damage the material and may create a fire risk in extreme heat.

Notes:

Choose the correct blanket size before ordering.
Allow the wastegate to cool fully before fitting or adjusting the blanket.
Wear gloves when handling the blanket because loose fibres may irritate skin.
Do not contaminate the blanket with oil, coolant or other fluids.
Professional installation is recommended if the clearance around the wastegate is tight.

Official product information supplied by Exoracing.
